Fibre Wall Outlet Extension Module with Pre-terminated Spool

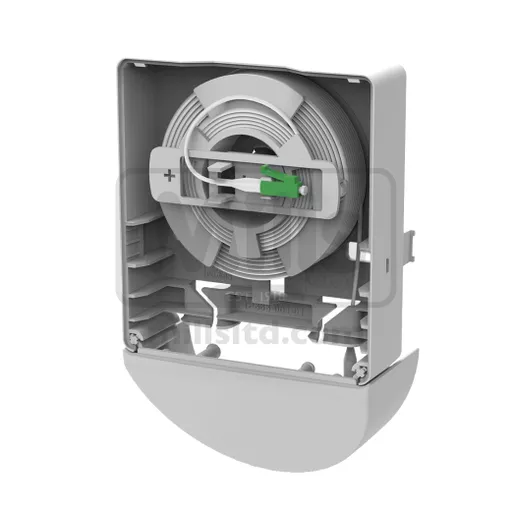

FWO-EXT-LPLP-SMA2-15M-WH_UK_01 WaterMark.jpg

Product No: FWOEA-WH-VV-SMA21501TIAWH-15M

Fibre Wall Outlet Extension Module with Pre-terminated Spool

The FWO Extension module allows for a pre-terminated fibre spool to be fitted on to an existing FWO allowing the customer to determine the final connection point for the router within their premise.

Quick Links

Connector

£25.11 ex VAT

£30.13 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

The extension module clips onto the existing FWO and features a built-in fibre spool containing 15m of 1.5mm G657.A2 fibre cable, pre-terminated at both ends with LC/APC or SC/APC connectors. One end connects directly to an LC/APC or SC/APC duplex adaptor within the FWO, while the other end allows for flexible routing up to 15m within the property to facilitate easy connection to a router.

The outlet is supplied with a connector plate which houses one of the LC/APC or SC/APC connectors as well as being the winding key for the fibre spool. An entry / exit point cover provides additional shielding for the incoming / outgoing cables, protecting them from damage or snagging as well as restricting the removal of connectors / adaptors once in place.

Each outlet is supplied with a fibre management routing kit to ensure that the minimum bend radius of the fibre cable is not exceeded during installation. Each consists of external / internal corner bend managers and through-the-wall cable managers.

The module is manufactured from Polycarbonate + ABS V0 rated material and the cover of the existing FWO fits in place over the extension module.

Features and benefits

Provides quick and simple solution for re-location of router connection point
Maximum 15m pre-terminated 1.5mm G657.A2 B2ca fibre cable
LC or SC versions available
Tamper-proof cover
Other cable specifications available on request
