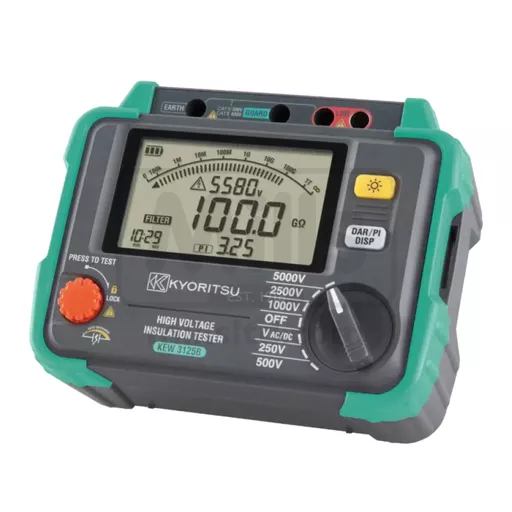

Kewtech 3125B High Voltage 5000V Insulation Tester

Product No: C70-1003

One of UK’s smallest high voltage 5KV tester. Guard terminal eliminates leakage currents for more accurate testing.

Quick Links

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

One of UK’s smallest high voltage 5KV tester. Guard terminal eliminates leakage currents for more accurate testing.

Key Features & Benefits:

Guard terminal eliminates leakage currents for more accurate testing
Filter function reduces noise interference for obtaining stable measurements
Lock down test button for hands-free testing
Complies to IEC61010-1 CAT IV 300V / CAT III 600V

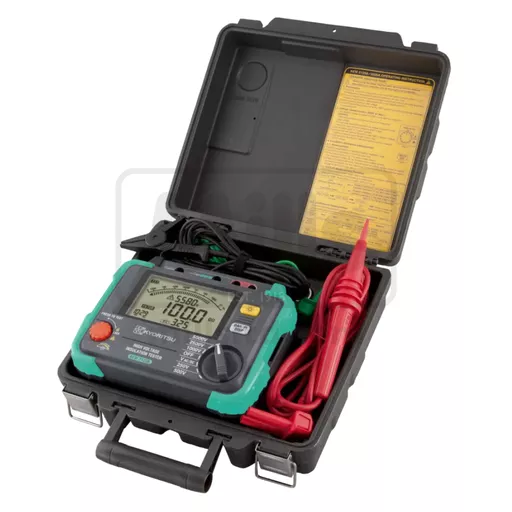

Includes: ACC7165A Line probe, ACC7264 Earth probe, ACC7265 Guard probe, ACC8019 Hook probe, Carry case and Batteries
Insulation Resistance up to 1TΩ
Short-Circuit current up to 1.5mA
Wide Test Voltage from 250V to 5000V
Bar graph indication
Diagnostics function of PI and DAR
Timer measurement function
Indication of output and discharge voltages
Auto-discharge
Voltage output warning system
Back light
Auto power off and battery check
