MDU S5 Splice Only with 18 SE MKII 3A trays for 432 horizontal splices

Product No: MDU-S5S-C09A1

MDU S5 Splice Only with 18 SE MKII 3A trays for 432 horizontal splices

The largest MDU enclosure is 568 x 375 x 165mm (H x W x D) enclosure and manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene), UV stable with an IP54, IK08 and V0 rating.

Quick Links

£208.89 ex VAT

£250.67 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

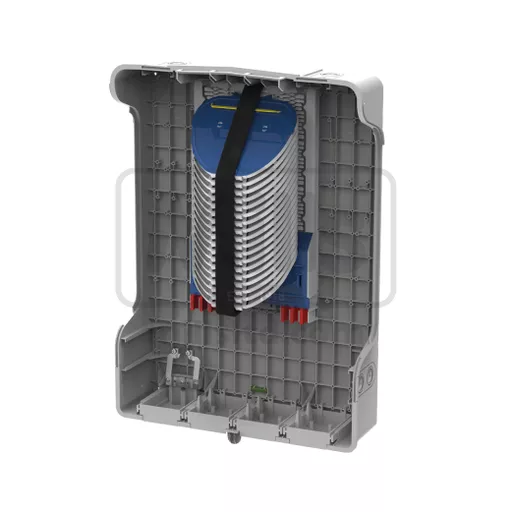

The S5 S (Splice Only) can be configured with the standard IR Fibre Management System (FMS) which accommodates 18 SE IR MKII splice trays giving a maximum of 432 3A splices and up to 6 PLC splitters in the FMS block.

The 6 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts. A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3–14mm OD cable.

An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 × 7mm), M20 and M25 cable glands (up to 18mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.

Features and Benefits

Indoor/outdoor applications
Maximum splice capacity: 576 (3A or ANT)
FMS with 18 SE‑IR, 36 SC‑B, 24 Compact SE‑IR or 48 Compact SC‑B trays
6 or 8 FMS entry points
Modular cable entry/exit ports
Fitted loop through anchor gland with black rubber seals (Ø 3–14mm)
Extensive range of accessories
