MDU S4 Splice Only with 10 SE MKII 3A trays for 240 horizontal splices

Product No: MDU-S4S-C04A1

MDU S4 Splice Only with 10 SE MKII 3A trays for 240 horizontal splices

The HellermannTyton S4 wall mountable enclosures are suitable for both internal and external applications and have been developed for use within the last mile of the FTTX network.

The medium MDU enclosure is 470 x 307 x 147mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and UL-94 V0 rating.

Quick Links

£145.55 ex VAT

£174.66 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

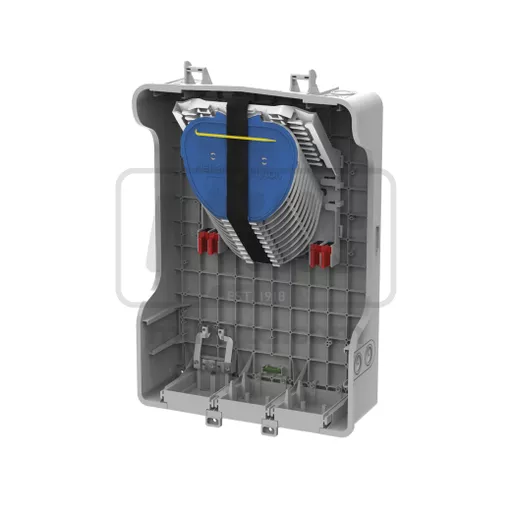

Designed with the large angled HellermannTyton IR Fibre Management System (FMS), the S4 S (Splice only) accommodates 10 SE IR MKII splice trays giving a maximum of 240 3A fibre splices and 6 PLC splitters.

A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3.0mm to 14.0mm.

The position of the FMS in the centre allows for horizontal splices and 4 red retaining blocks for easier access of the fibre routing onto the trays. The 4 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.

An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 × 7mm drops), M20 cable glands (up to 14mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.

Features and Benefits

Indoor/outdoor applications
Maximum splice capacity: 288 (3A or ANT)
FMS with 10 SE-IR, 20 SC-B, 12 Compact SE or 24 Compact SC trays
4 FMS entry points
Modular cable entry/exit ports
Fitted loop through anchor gland with black rubber seals (Ø 3–14mm)
Extensive range of MDU accessories
