MDU S3 Splice Only with 4 SE MKII 3A trays for 96 vertical splices

Product No: MDU-S3S-L01A1

MDU S3 Splice Only with 4 SE MKII 3A trays for 96 vertical splices

The MDU S3 enclosure is a modular solution that can be configured in a number of ways to suit the deployment of a specific indoor/outdoor project or installation.

The 340 x 247 x 76mm (H x W x D) enclosure is manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene): the S3 is UV stable with an UL-94 V0, IP54 and IK08 rating.

Quick Links

£80.95 ex VAT

£97.14 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

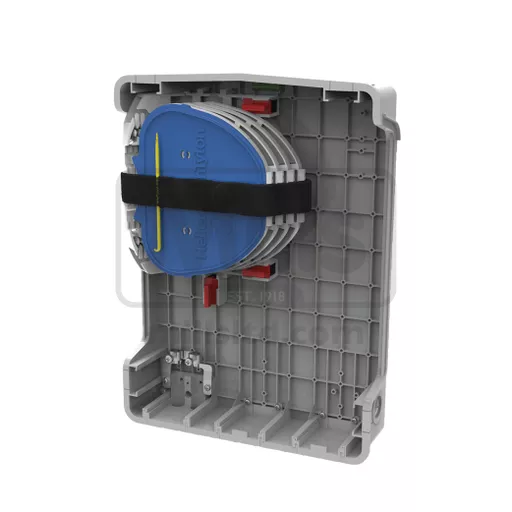

Designed with the small angled HellermannTyton IR Fibre Management System (FMS), the S3 S (Splice only) accommodates 4 SE IR MKII splice trays giving a maximum of 96 3A fibre splices and 3 PLC splitters.

A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3.0mm to 14.0mm.

The position of the FMS on the left allows for vertical splices and an additional red retaining block for easier access of the fibre routing onto the trays. The 3 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.

An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 × 5mm drops), M20 cable glands (up to 14mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets.

Features and Benefits

Indoor/outdoor applications
Maximum splice capacity: 96 (3A or ANT)
FMS with 4 SE IR trays or 8 SC-B IR trays
Multi tray orientation configurations (horizontal / vertical)
2 or 3 FMS entry points
Modular cable entry/exit ports
Fitted loop through anchor gland with black rubber seals (Ø 3–14mm)
Extensive range of MDU accessories
