MDU S3 Connectorised with 4 SE MKII 3A trays - 32 SC/APC connections

Product No: MDU-S3C-C02A2-13A

MDU S3 Connectorised with 4 SE MKII 3A trays - 32 SC/APC connections

The MDU S3 enclosure is a modular solution that can be configured in a number of ways to suit the deployment of a specific indoor/outdoor project or installation.

The 340 x 247 x 76mm (H x W x D) enclosure is manufactured in light grey (RAL 7035) ABS (Acrylonitrile Butadiene Styrene): the S3 is UV stable with an UL-94 V0, IP54 and IK08 rating.

Quick Links

£125.42 ex VAT

£150.50 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

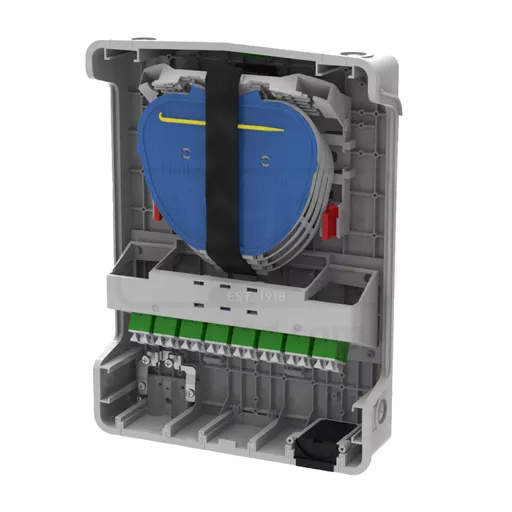

Designed with the small angled HellermannTyton IR Fibre Management System (FMS), the S3 C (Connectorised) accommodates 4 SE IR MKII splice trays giving a maximum of 96 3A fibre splices and 3 PLC splitters with an Integrated Connectorised Unit (ICU) loaded with 16 SC APC duplex adaptors and provision for up to 2 × 1:32 PLC splitters.

A loop through anchor bracket is pre-fitted on the left port of the base. The dual outlet of the bracket allows for loop through applications. The black rubber seals cover a cable range of 3–14mm OD cable. The position of the FMS in the centre allows for horizontal splices. The 2 red retaining blocks guide the fibre elements onto the FMS and their foam pads can be cut through to accommodate a range of fibre counts.

One multi-drop seal (24 × 5mm drops) is pre-fitted on the right port of the base.

An extensive range of optional accessories is available upon request and include lock, multi-drop seals (24 × 5mm), M20 cable glands (up to 14mm), loop through anchor kit, drop cable anchor brackets, SC or coloured splice trays, splitter holders for trays, internal or external loop storage baskets, PLC bare end or connectorised splitters (1:32, 1:16, 1:8, 1:4), easy strip coloured pigtails, internal corridor cables (bare end or fanout).

Features and Benefits

Up to 32 connections
Indoor / outdoor applications
Maximum splice capacity: 96 (3A or ANT)
FMS with 4 SE IR trays or 8 SC-B IR trays
Multi tray orientation configurations (horizontal / vertical)
2 or 3 FMS entry points
3 modular cable entry / exit ports
Loop through cable kit with black rubber seals (Ø 3–14mm)
Extensive range of accessories
