Product No: PICOFLOW

Fremco PicoFlow Rapid

Product No: PICOFLOW

Fremco PicoFlow Rapid

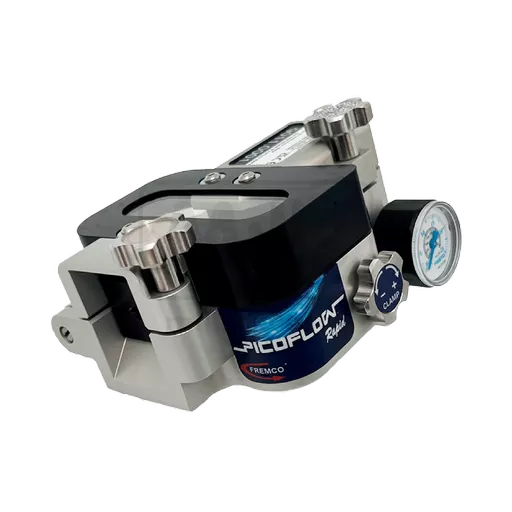

A small, handheld fibre blowing machine for FTTH fibres and micro cables up to 3mm that works with a drill machine. Perfect for installers with the occasional job or for experienced installers who need to blow a short distance to finish a job.

Quick Links

Request price

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

A small, handheld fibre blowing machine for FTTH fibres and micro cables up to 3mm that works with a drill machine.

Perfect for installers with the occasional job or for experienced installers who need to blow a short distance to finish a job.

Tool-free installation

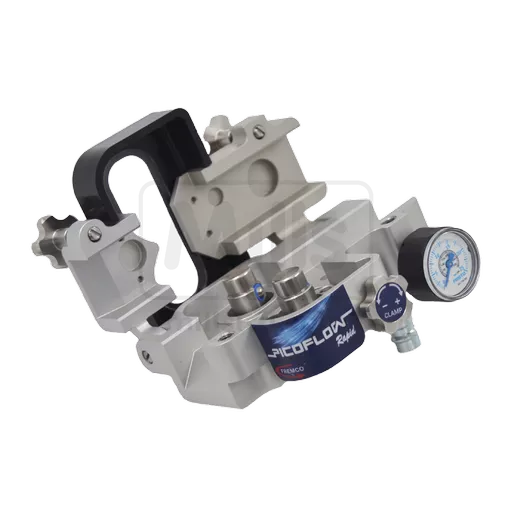

The user-friendly interface eliminates the need for tools during installation. With a simple and intuitive design, the machine can be easily opened and closed by hand with quick fibre and duct loading. This can result in completing one more job each day.

Cost effective

PicoFlow RAPID is designed to be a cost-effective solution, saving both time and resources in fibre blowing applications.

Seamless field operation

Experience hassle-free and prompt field operation with our machine. Upon unpacking, it is ready to run, minimizing unnecessary delays and complications.

Specifications

Item No.....................................................................101-231211100

Fiber diameter.....................................................................0.8-3mm

Duct diameter...................................................................3-12.7mm

Blowing distances.............................................Up to 500m(1640ft)

Blowing speed1,2.................................Up to 90m/min.(295ft/min)

Pushing force2.........................................................0-2 kg(0-4.4 lbs)

Maximum air pressure.....................................Max. 16bar (232psi)

Recommended airflow3:...........................Min. 200 l/min.(7.1 cfm)

Ambient temperature............................................0-40°c (32-104°f)

Clampingforce on cable......................................Manually adjusted

Weight(Unconfigured)..............................................0.590 kg(1.3lbs)

Weight (Configured).................................................0.690kg (1.5lbs)

Weight (withtransport box+ parts)............................5.8kg(12.8lbs)

Length..........................................................................111mm(4.37”)

Width..............................................................................77mm(3.03”)

Height.............................................................................87mm(3.43”)
