Mills Coiled Drop Drum Reeler Adaptor

Product No: S13-0307

Mills Coiled Drop Drum Reeler Adaptor

Mills Coiled Drop Drum Reeler Adaptor is designed for efficient deployment of Virgin Media pre-connectorised drop cables for FTTH (Fibre to the Home) applications.

Quick Links

£109.62 ex VAT

£131.54 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

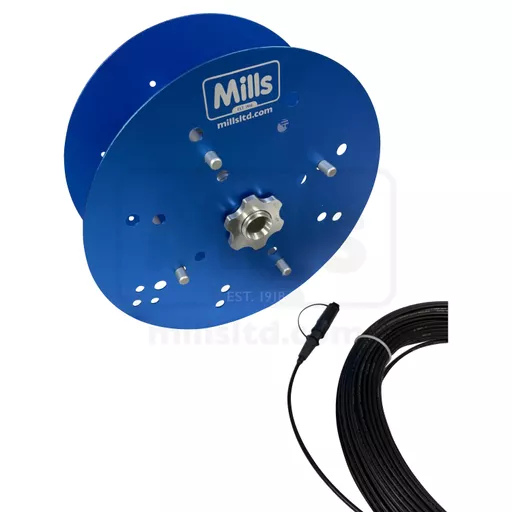

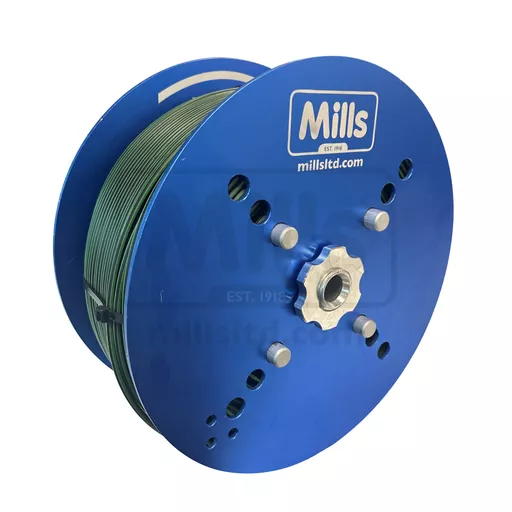

Mills Coiled Drop Drum Reeler Adaptor is designed for efficient deployment of Virgin Media pre-connectorised drop cables for FTTH (Fibre to the Home) applications. Perfect for both aerial and underground installations, this metal drum eliminates the need for single-use plywood drums, saving space, reducing waste, and minimising weight during transportation.

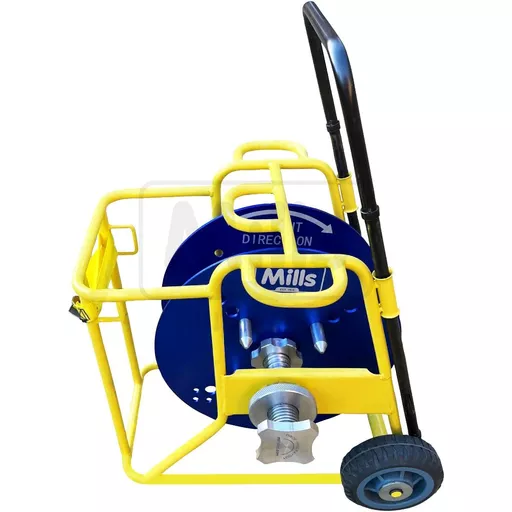

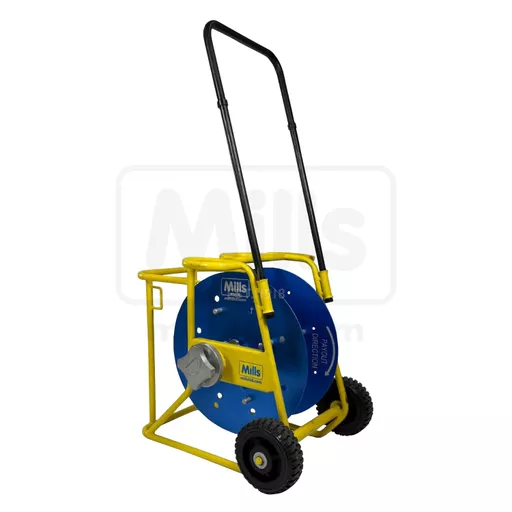

The Mills Drop Drum Adaptor is used in conjunction with the Dispenser Dropwire 2B or 2C (S00-8432).

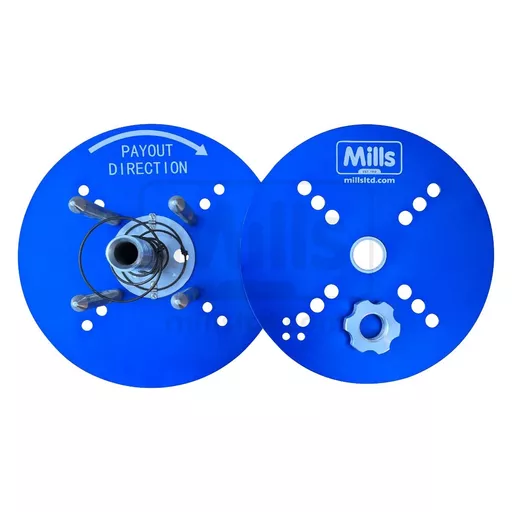

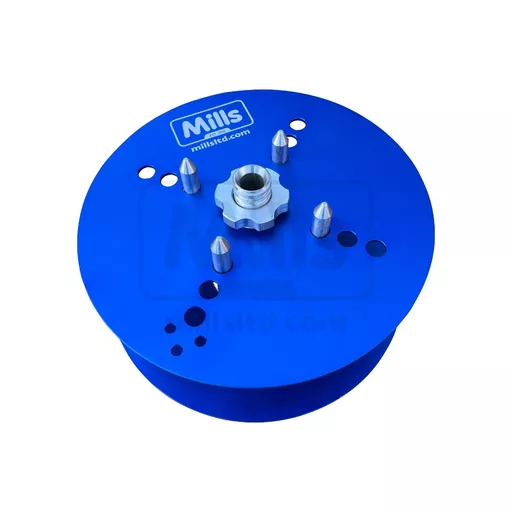

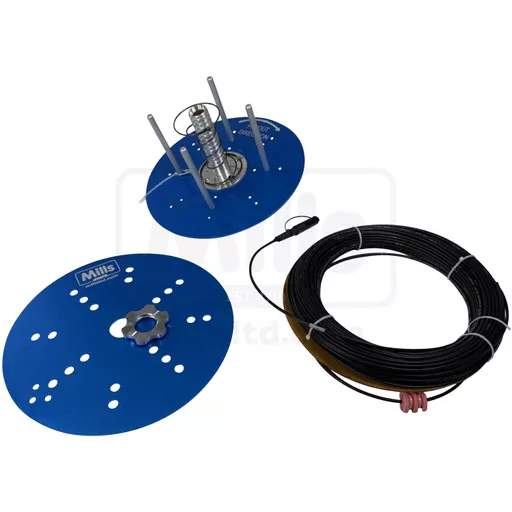

Mills Coiled Drop Drum Adaptor features 4 adjustable spigot rods which can be fitted in 3 positions, making it suitable for various cable types with internal windings of 175mm to 295mm to be accommodated.

Please note: The current model (Mk2) is supplied with 4 aluminium spigots 13mm x 166mm whereas earlier models (Mk1) were supplied with 4 aluminium spigots 19mm x 180mm.

Both sizes of replacement spigots as well as a replacement central nut, are available as follows:

S13-0308 - Replacement for S13-0307 Central NutReplacement aluminium central nut for Mills coiled drop drum reeler adaptor (S13-0307)

S13-0309 - Replacement for S13-0307 Spigot Mk1 13 x 166mm c/w M6 Countersunk screwReplacement spigot complete with countersunk screw for Mills Mk 2 coiled drop drum reeler adaptor (S13-0307)

S13-0310 - Replacement for S13-0307 Spigot Mk2 19 x 180mm c/w M8 Countersunk ScrewReplacement spigot complete with countersunk screw for Mills Mk1 coiled drop drum reeler adaptor (S13-0307)

*Cable not included.
