Product No: K83-1003

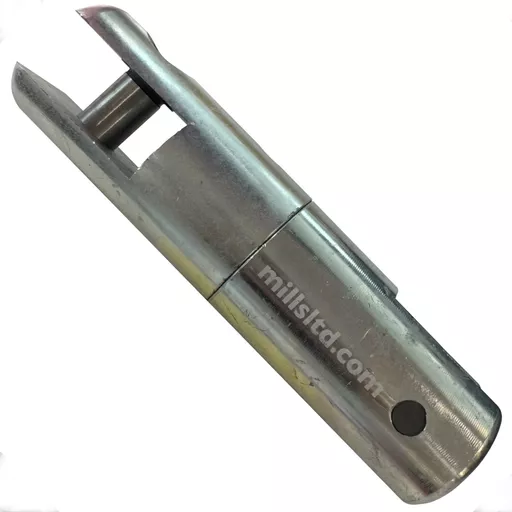

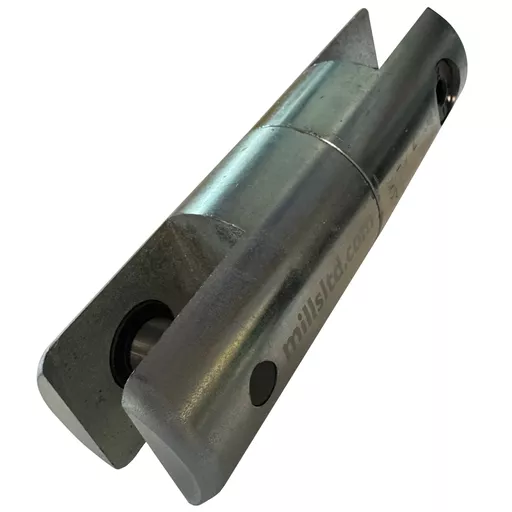

Cable Swivel Link

Product No: K83-1003

Cable Swivel Link

Available in 3,000kg, 5,000kg and 10,000kg capacities.

Quick Links

£119.00 ex VAT
£142.80 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.



Quick Links




The Cable Pulling Swivel Link is an essential part of the cable pulling process and is designed to connect to the winch rope and cable grip and ensures that any twisting of the winch rope from the cable is taken out in this component, thus ensuring the winch bond lays correctly back onto the winch.

The units are available in 3t, 5t and 10t capacity, although larger sizes are available upon request. The tonnage is relevant to the tonnage capabilities of the winch being used.

All units are fitted with an internal bearing to ensure smooth turning, and they are all tested to the relevant loadings for strength and also to ensure that the swivels still turned at those ratings.

3000kg Capacity
Jaw Opening 16mm
Overall Diameter 32mm
Overall Length 115mm

5000kg Capacity
Jaw Opening 26mm
Overall Diameter 53mm
Overall Length 180mm

10,000kg Capacity
Jaw Opening 30mm
Overall Diameter 60mm
Overall Length 210mm

Mills Part Numbers
K83-1001 Cable Pulling Swivel Link 3,000Kg
K83-1002 Cable Pulling Swivel Link 5,000Kg
K83-1003 Cable Pulling Swivel Link 10,000kg
