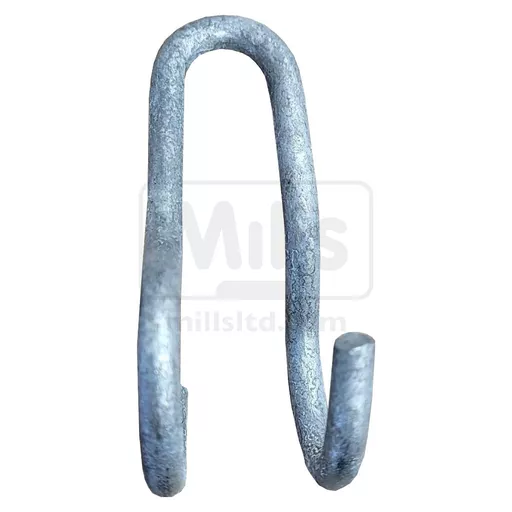

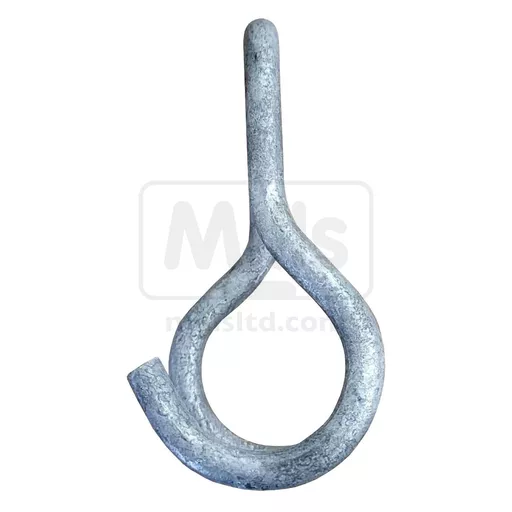

Hook Drop Wire Clamp (Hook Clamp Dropwire 25) Pack 10

Product No: S83-2625

Hook Drop Wire Clamp (Hook Clamp Dropwire 25) Pack 10

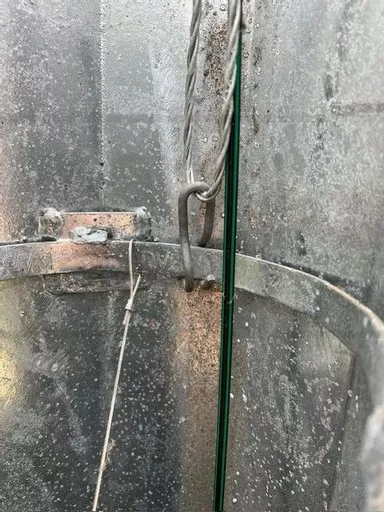

A dual purpose clamp used with Clamp Dropwire 10 (S83-2746) for hollow pole cabling and also with Bolt 25 (R02-1110) when used with old style crown rings.

Crown Type Rings were fitted to Distribution Poles prior to 1960. Attachment to these poles may be made using one of the following options:

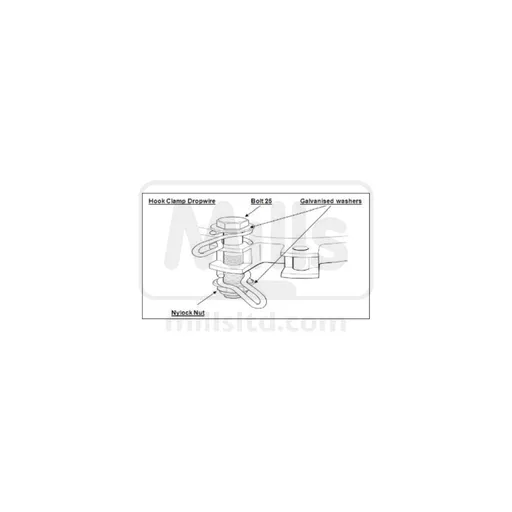

a) By using a "Bolt 25" which is threaded between the upper and lower apertures on the Ring and a "Hook Clamp Dropwire" 25. This is the reccomended option.

b) Alternatively, the wire may be attached directly to the upper or lower ring aperture.

c) Or, to the J Bracket (one wire per J Arm).

The Crown Ring is capable of accommodating up to 30 radially distributed Dropwires.

Supplied in packs of 10. Ref 012221.

Quick Links

£6.13 ex VAT

£7.36 inc VAT

Product Wishlist & Compare Placeholder

Free Standard Delivery over £100

Delivery cost calculated at checkout.

Quick Links

Full description

A dual purpose clamp used with Clamp Dropwire 10 (S83-2746) for hollow pole cabling and also with Bolt 25 (R02-1110) when used with old style crown rings.

Crown Type Rings were fitted to Distribution Poles prior to 1960. Attachment to these poles may be made using one of the following options:

a) By using a "Bolt 25" which is threaded between the upper and lower apertures on the Ring and a "Hook Clamp Dropwire" 25. This is the reccomended option.

b) Alternatively, the wire may be attached directly to the upper or lower ring aperture

c) Or, to the J Bracket (one wire per J Arm)

The Crown Ring is capable of accommodating up to 30 radially distributed Dropwires.

Supplied in packs of 10. Ref 012221.
