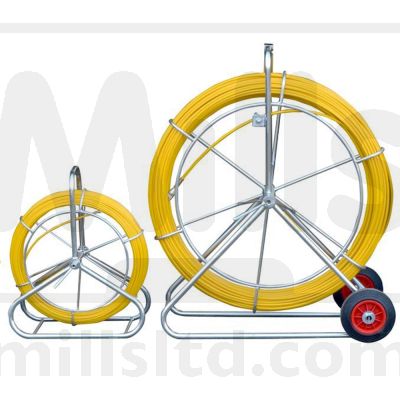

Mills Cobra Rod and Frame

The Mills Cobra Continuous Rodding System represents a faster and more economical solution than traditional screw together duct rods and is available in standard diameters from 4.5mm to 14mm and a range of lengths from 60 to 500 metres to suit most applications.

The conduit rods are supplied in robust zinc plated steel frames and the use of high quality fibreglass rod with radically reinforced construction and high tensile strength ensures on-going reliability and strength.

The 4.5mm and 6mm units are free standing whilst the heavier 9mm, 11mm and 14mm units are supplied with wheels for mobility and ease of use.

Mills Part Numbers

S00-7714 4.5mm x 60m - Weight 6kg
S00-3062 4.5mm x 80m - Weight 8kg
S00-3063 4.5mm x 100m - Weight 9.5kg

S00-1358 6mm x 60m - Weight 10kg
S00-3590 6mm x 100m - Weight 12kg
S00-3290 6mm x 120m - Weight 13kg
S00-3292 6mm x 150m - Weight 14kg

S00-3294 9mm x 100m - Weight 30kg
S00-1352 9mm x 120m - Weight 32kg
S00-1370 9mm x 150m - Weight 35kg
S00-3296 9mm x 200m - Weight 40kg

S00-3298 11mm x 100m - Weight 39kg
S00-3300 11mm x 150m - Weight 47kg
S00-1355 11mm x 200m - Weight 54kg
S00-1356 11mm x 250m - Weight 61kg
S00-3302 11mm x 300m - Weight 69kg
S00-7604 11mm x 350m - Weight 78kg

S00-3304 14mm x 150m - Weight 65kg
S00-3306 14mm x 200m - Weight 77kg
S00-3308 14mm x 250m - Weight 87kg
S00-3310 14mm x 300m - Weight 99kg
S00-3312 14mm x 350m - Weight 111kg
S00-7605 14mm x 400m - Weight 123kg
S00-7606 14mm x 450m - Weight 135kg
S00-7607 14mm x 500m - Weight 147kg
