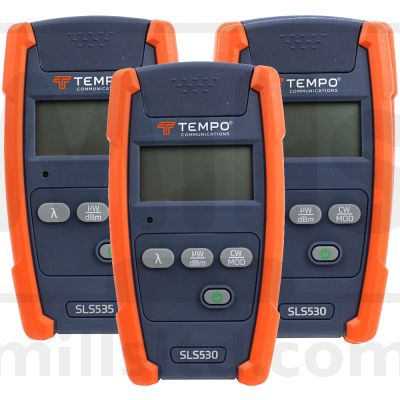

Tempo SLS Triple Wavelength Stabilised Laser Source

Durable and compact, the Stabilised Light Source will interface with all industry standard connectors.

Available in the following models:

SLS530 - Centre Wavelength 1310/1490/1550

SLS535 - Centre Wavelength 1310/1550/1625

SLS536 - Centre Wavelength 1310/1550/1650

Features

• 270Hz, 1kHz and 2kHz tone

• PC flat polish interface

• Each source is supplied with one SC/PC adapter for each bulkhead.

Specifications

Fibre Type Singlemode

Emitter Type FP

Spectrum Width ≤ 5nm

Output Power (Max/Min) ≤ 0dBm/-1dBm

Output Power Stability ±0.05 dB/15min; ±0.10dB/8hr

Modulation Frequency 270, 1kHz, 2kHz

Display LCD

Battery Life 60 Hours

Connector Type SC/PC (Interchangeable LC ,ST, FC)

Power Supply 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter

Operating Temerature -10ºC to 50ºC

Storage Temperature -20ºC to 70ºC

Relative Humidity 0 to 95% (non-condensing)

Weight 0.71 lbs (300g)

Dimensions (H×W×T) 6.1 × 3.5 × 1.3” (155 × 89 × 33mm)

IP Rating IP54

Vibration 5Hz to 150Hz, Amplitude = 0.15mm

Shock Peak acceleration 25g at a pulse duration of 6ms

Compliance CE, FCC, 21 CFR 1040.10 (Laser)

See datasheets for further details

Mills Part Numbers

C00-4124 SLS530 - Triple Wavelength Stabilised Light Source 1310/1490/1550

C00-4125 SLS535 - Triple Wavelength Stabilised Light Source 1310/1550/1625

C00-4126 SLS536 - Triple Wavelength Stabilised Light Source 1310/1550/1650
