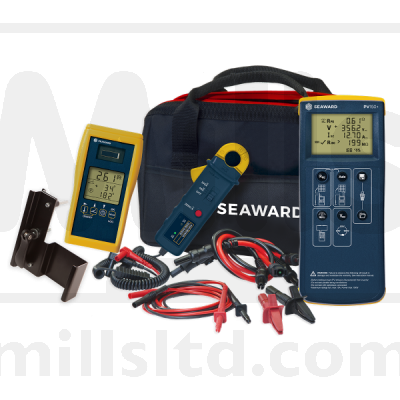

Seaward PV150+ Solar Installation Complete Test Kit
The PV150+ is an upgraded version of the popular PV150, designed to better support the testing of PV modules with recent technology advances and associated higher efficiencies. Combines ground continuity, DC operating power, and operating current test functions. It can also test insulation resistance, open circuit voltage, and short circuit current at the push of a button.
Improved capacitive induced in-rush protection by a factor of 300%
Combines PV commissioning tests required by IEC 62446
Enables the user to safely test energized PV arrays
Easy to use, single key testing and measurement operation
On-board data storage and USB connectivity for data export
Key Features:
Ground (earth) continuity measurement with test lead null for long test-leads
PV string open circuit voltage measurement up to 1000V DC with polarity indication
PV string short circuit current measurement up to 15A DC
PV array insulation test at 250/500/1000V
Tests individual PV modules or strings
Contents
2x MC4 test lead adaptors
2x Combiner box test probes and detachable alligator clips (MC4)
AC/DC current clamp
Solar Survey 200R irradiance meter and temperature probe
Solar Survey 200R mounting bracket
Rugged carry bag
Quick Start Guide
UKAS Calibration Certificate
SolarCert PC Software
Please see the specifications sheets for further details.
The PV150+ is an upgraded version of the popular PV150, designed to better support the testing of PV modules with recent technology advances and associated higher efficiencies. Combines ground continuity, DC operating power, and operating current test functions. It can also test insulation resistance, open circuit voltage, and short circuit current at the push of a button.
Improved capacitive induced in-rush protection by a factor of 300%
Combines PV commissioning tests required by IEC 62446
Enables the user to safely test energized PV arrays
Easy to use, single key testing and measurement operation
On-board data storage and USB connectivity for data export
Key Features:
Ground (earth) continuity measurement with test lead null for long test-leads
PV string open circuit voltage measurement up to 1000V DC with polarity indication
PV string short circuit current measurement up to 15A DC
PV array insulation test at 250/500/1000V
Tests individual PV modules or strings
Contents:
2x MC4 test lead adaptors
2x Combiner box test probes and detachable alligator clips (MC4)
AC/DC current clamp
Solar Survey 200R irradiance meter and temperature probe
Solar Survey 200R mounting bracket
Rugged carry bag
Quick Start Guide
UKAS Calibration Certificate
SolarCert PC Software
Replaces C72-1981
Please see the specifications sheets for further details.
