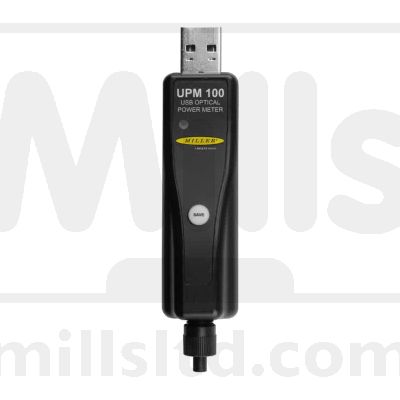

Ripley UPM-100 USB Optical Power Meter

The Ripley Miller UPM100 Power Meter is used with ODM software to capture dB loss readings in optical fibre systems. The UPM’s small size and “plug and play” configuration make it the ideal tool for loss testing at any site; simply plug it into your computer’s USB port and begin testing. Compatible with Ripley Miller's VIS and Data Manager software, the UPM100 transmits a continuous stream of data, refreshing every second to ensure the most accurate reading possible.

Users can save readings based on carrier or build-specific guidelines, and results displayed in red or green help testers easily identify acceptable and unacceptable dB loss measurements. The UPM100 is fully compatible with the ODM PA 255B Portable Access Device and VIS application, allowing for wireless inspection and testing with a smartphone or tablet.

Use a laptop PC, smartphone, tablet or Sidekick Plus as a fully-featured OPM. The UPM100 plugs into computers and smart devices using a simple USB 2.0 or higher connection.
The compact design of the UPM100 makes them ideal for many testing situations.

Use the UPM100 to create custom reports with ODM VIS and Data Manager platforms. Include power meter results with image reports, or export many readings to a full power meter report.
Achieve precise results each and every time. The detector in the UPM100 ensures pinpoint accuracy in optical measurements (in dB, dBm or Watts).

This USB power meter comes equipped with a 2.5mm universal adapter. Other universal and specific adapter/connector styles are available.

Available in the following models:

UPM100-02 - Measurement Range -  +6 to -70dBm / Detector Type - InGaAs

UPM100-04 - Measurement Range - +23 to -45dBm / Detector Type - Filtered InGaAs

Features:
• 850, 1300, 1310, 1490, 1550, 1610, & 1625nm wavelengths
• Transmit live dB and dBm readings via USB 2.0 or higher for storage and closeout reporting
• Smartphone compatible  (Android and Windows)
• Set reference/zero functionality
• Accepts all connector styles
• Single Mode and Multi Mode testing
• Plug-and-play design - begin testing with VIS and Data Manager software immediately

Specification:
Wavelength Range - 850nm to 1625nm
Calibrated Wavelengths - 850, 1300, 1310, 1490, 1550, 1610, 1625
Measurement Types - dB (Insertion Loss) / dBm (Absolute Power)
Resolution - 0.01dB
Absolute Accuracy - +/- 0.25dB
Optical Interface - Universal 2.5mm (Other adapters stocked)
Tone Identification - 2kHz Incoming Signal - Audible Alert
Storage - External Storage in VIS or Data Manager
Data Transfer - USB 2.0 or higher
Dimensions - 3.75” x .75” x .75” (9.5cm x 1.9cm x 1.9cm)
Weight - 0.05 lb (22.68g)

Mills Part Numbers

C00-7174 Ripley Miller UPM100-02 USB Optical Power Meter (+6dBm to -70dBm)

C00-7175 Ripley Miller UPM100-04 USB Optical Power Meter (+23dBm to -45dBm)
