Ripley Miller CFS Series Fibre Optic Stripper

Ripley CFS Series fibre optic stripper manufactured to precise tolerances to ensure clean, smooth strips with every use. Available in the following models:

CFS1 - One-hole design efficiently strips 250μm buffer coating to expose the 125μm optical fibre in one compact tool

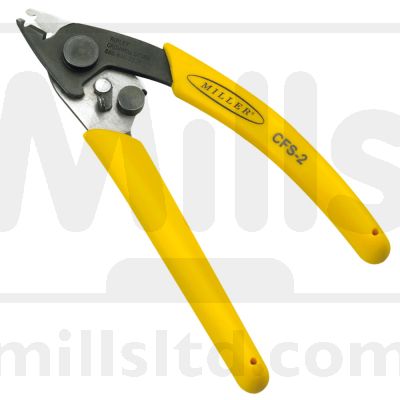

CFS2 - Two hole design efficiently strips away the coating from the 125 micron bare fibre in one compact tool.

First hole - 1.6 - 3 mm Jacket → 600 - 900 µm Tight Buffer
Second Hole - 250 µm Buffer Coating → 125 µm Bare Fibre

CFS3 - Three-hole design efficiently removes 1.6 mm to 3 mm fibre jackets & buffers down to the 125 micron bare fibre in one compact tool

1st Hole Application 1.6 - 3 mm Jacket → 600 - 900 µm Tight Buffer
2nd Hole Application 600 - 900 µm Tight Buffer → 250 µm Buffer Coating
3rd Hole Application 250 µm Buffer Coating → 125 µm Bare Fibre

All stripping surfaces are quality manufactured to precise tolerances to ensure clean, smooth strips with every use

Factory-set blade notches require no adjustment & will not scratch or nick the fibre

Compliant thermoplastic elastomer handle grips are ergonomically designed to fit comfortably in either hand, reducing the risk of injury from the repetitive stripping function

Length 6.5ʺ (165 mm)

Weight 4.2 oz (119 g)

Mills Part Numbers

E00-0950 Ripley Miller CFS-1 1 Hole Fibre Optic Stripper

E00-0985 Ripley Miller CFS-2 2 Hole Fibre Optic Stripper

E00-0952 Ripley Miller CFS-3 3 Hole Fibre Optic Stripper
