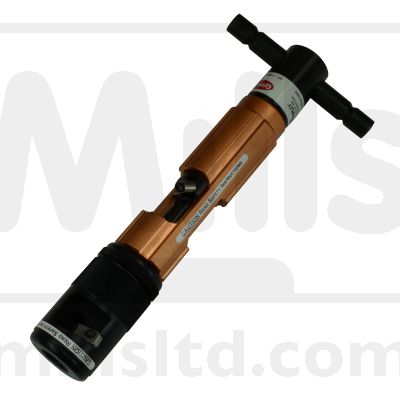

Ripley Cablematic QRT Coaxial Coring & Stripping Tool with 3/8ʺ Drill Adaptor

Designed to simultaneously strip the jacket, core the dielectric, strip the aluminum sheath and trim the conductor to the proper length in one quick operation.

• Specially designed to strip the jacket, core the dielectric, strip the aluminum sheath and trim the conductor to the proper length for Commscope Quantum Reach (QR) Times Fibre Communications (TC) TX0 and Alcatel Cabel Benelux-ACE/ACW cables
• Heat-treated sheath cutting blade produces a smooth, beveled edge & can be replaced
• Features a “T” handle with a built-in 3/8″ drill adaptor

Available in the following cable sizes:

500 kcmil / .500

540 kcmil / .540

715 kcmil / .715

860 kcmil / .860

Please see datasheet for further details

Mills Part Numbers

C00-4162 - 500 kcmil / .500 - QRT 500 34640
C00-4164 - 540 kcmil / .540 - QRT 540 34641
C00-4165 - 715 kcmil / .715 - QRT 715 34660
C00-4166 - 860 kcmil / .860 - QRT 860 34642
