Prysmian - Split Seal System

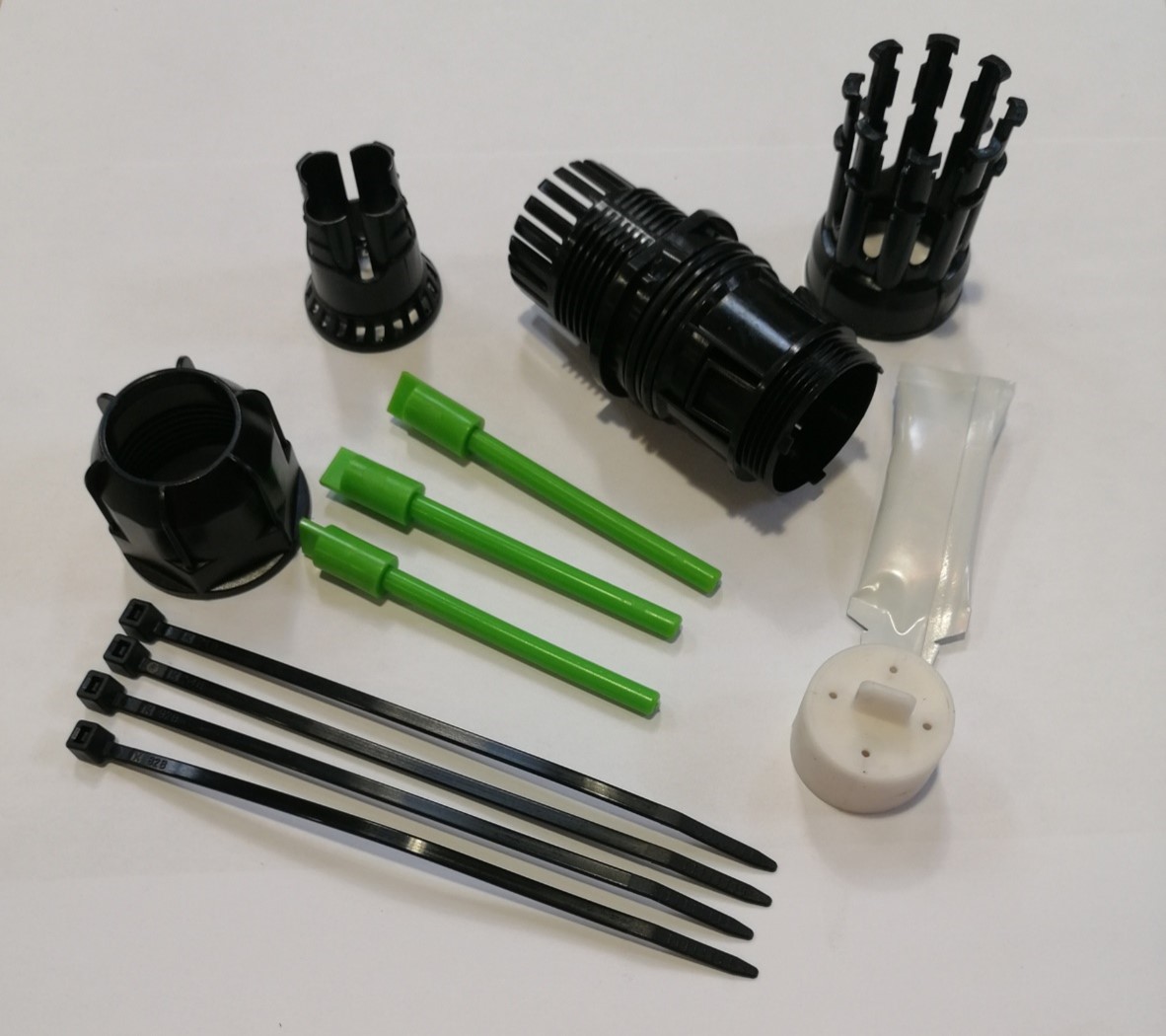

Split seal system:

The Split seal cable entry system on the new Preconnectorised xMJ range maintains the familiarity of the existing splice only xMJ mechanical gland system but optimised for Preconnectorised cables. The rubber seals are pre-split to allow easy passing of the connectorized cables and there is a cable tie attachment for simple retention of cables both inside and outside of the closure.

Up to 4 split seal ports can be used in each xMJ closure, with up to 8 cables 3-5mm in diameter per gland (32 per closure).


Slack storage bracket:

The slack storage bracket is for storage of excess preconnectorised cable lengths entering or exiting the Preconnectorised xMJ. It can store up to 50m of 3mm cable.
