Prysmian Circular Port Entry Gland for UMJ/CMJ/MMJ/LMJ Enclosures

Prysmian Circular Port Entry Glands are used to instal cables into the ports of a joint closure base. The glands are mechanical in nature and are installed onto the cable, then simply pushed into the base of the joint.

Features

Available in single, dual, quad and 8 way variations.

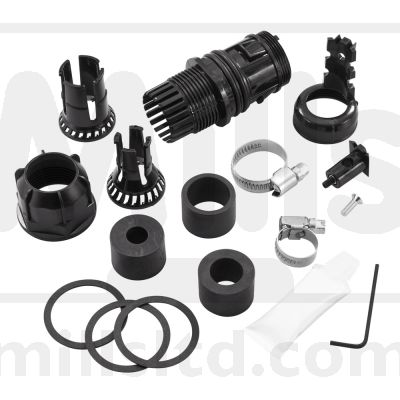

Each kit contains all necessary parts to seal the cable and secure the cable strength members.
Multi-way glands are useful when installing several smaller cables into one circular port.

For larger cables an Oval Port Kit is used.

Joint Type: UMJ/CMJ/MMJ/LMJ

Available in the following configurations:

1 Entry 4-7mm CSM or Aramid
1 Entry 7.1-20mm CSM or Aramid
1 Entry 20-23mm CSM or Aramid
2 Entry 5-9mm Flex Conduit Interface
4 Entry 5-7mm Aramid
4 Entry 4-6mm CSM
4 Entry 5-7mm CSM
4 Entry 7-8.5mm CSM
4 Entry SST
8 Entry 3mm Round

Mills / Prysmian Part Numbers

XJTSC02278 Prysmian Circular Port Entry Gland CSM or Aramid 1 Way 4-7mm UMJ/CMJ/MMJ/LMJ
XJTSC01754 Prysmian Circular Port Entry Gland CSM or Aramid 1 Way 7.1-20mm UMJ/CMJ/MMJ/LMJ
XJTSC02193 Prysmian Circular Port Entry Gland CSM or Aramid 1 Way 20-23mm UMJ/CMJ/MMJ/LMJ
XJTSC03437 Prysmian Circular Port Entry Gland 2 Way 5-9mm UMJ/CMJ/MMJ/LMJ
XJTSC02767 Prysmian Circular Port Entry Gland CSM 4 Way 4-6mm UMJ/CMJ/MMJ/LMJ
XJTSC01755 Prysmian Circular Port Entry Gland Aramid 4 Way 5-7mm UMJ/CMJ/MMJ/LMJ
XJTSC02768 Prysmian Circular Port Entry Gland CSM 4 Way 5-7mm UMJ/CMJ/MMJ/LMJ
XJTSC02769 Prysmian Circular Port Entry Gland CSM 4 Way 7-8.5mm UMJ/CMJ/MMJ/LMJ
XJTSC02352 Prysmian Circular Port Entry Gland 4 Way SST UMJ/CMJ/MMJ/LMJ
XJTSC02260 Prysmian Circular Port Entry Gland 8 Way 3mm UMJ/CMJ/MMJ/LMJ
