Multimode Fibre Pigtail 1m

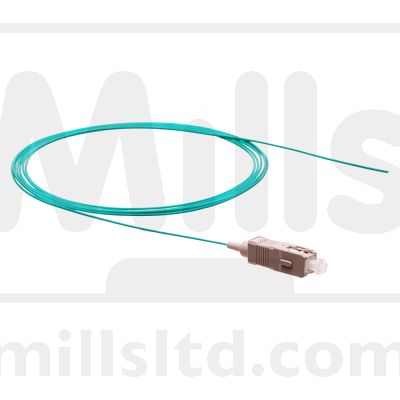

Fibre optic pigtail, suitable for common splicing applications in a 1 metre length on 900μm tight buffered fibre cable.

All assemblies are fully tested prior to delivery and supplied with test results.

Applications

• Telecom, CATV and LAN applications
• On-site termination
• Patch panels, wall boxes, ODF’s and splice cassettes, dome and in-line splicing enclosures

Features

• LSZH - Low smoke zero halogen, 900μm tight buffered fibre
• Fibre conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards

Cable Specification

Crush N/100mm 500

Operating Temperature (°C)°C-20 to +60

Nominal Buffer Diameter μm 900+50

Max Tensile Load N 6

Connector Specification

IL Max/Master (db) (Acceptance) ≤ 0.25

Av./Random (db) ≤ 0.20

Fibre Specification

OM1 multimode pigtails are supplied with a white jacket as standard.

Attenuation (db / km)≤ 2.7 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal Bandwidth (MHz x km) ≥ 200 @ 850nm / ≥ 500 @ 1300nm

OM3 multimode pigtails are supplied with an aqua jacket.

Attenuation (db / km) ≤ 2.4 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal Bandwidth (MHz x km) ≥ 1500 @ 850nm / ≥ 500 @ 1300nm

Effective Modal Bandwidth (MHz x km)≥ 2000 @ 850 nm

OM4 multimode pigtails are supplied with an aqua jacket.

Attenuation (db / km) ≤ 2.4 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal Bandwidth (MHz x km) ≥ 3500 @ 850nm / ≥ 500 @ 1300nm

Mills Part Numbers

T70-0526 LC Multimode Fibre Pigtail OM1 62.5/125 1m
T70-2327 SC Multimode Fibre Pigtail OM1 62.5/125 1m
T70-2326 ST Multimode Fibre Pigtail OM1 62.5/125 1m

T70-0527 LC Multimode Fibre Pigtail OM3 50/125 1m
T70-0115 SC Multimode Fibre Pigtail OM3 50/125 1m
T70-0114 ST Multimode Fibre Pigtail OM3 50/125 1m

T70-5612 LC Multimode Fibre Pigtail OM4 50/125 1m
T70-5611 SC Multimode Fibre Pigtail OM4 50/125 1m
T70-5610 ST Multimode Fibre Pigtail OM4 50/125 1m
