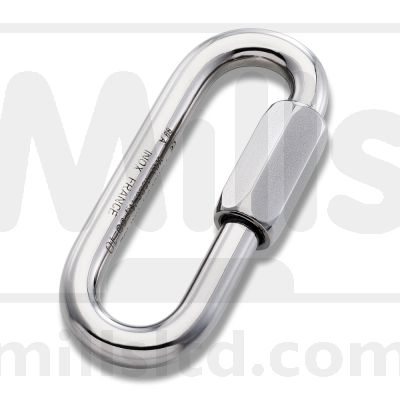

Link Cabling Maillon

Standard screw-type rope link also known as a maillon for overhead and underground applications. Available in two models.

Model specifications

The No.1 is used to attach Rope Cabling 1 to cabling grips or join two lengths of Rope Cabling 1 together and also used in the installation of overhead Corning SST cable.

BT Openreach Ref:126421

Bar Diameter: 8mm
Gate Opening: 17.5mm
WLL: 650 kg

The No.2 is used to attach Rope Cabling 4 to cabling grips or join two lengths of Rope Cabling 4 together and also used in the installation of overhead Corning SST cable.

Bar Diameter: 10mm
Gate Opening: 20.5mm
WLL: 1000 kg
BL: 50 kN

Mills Part Numbers

S83-2662 Link Cabling Maillon No 1 (8mm Dia with 17.5mm Opening - 650kg Working Load Limit)

S83-2663 Link Cabling Maillon No 2 (10mm Dia with 20.5mm Opening - 1000kg Working Load Limit)
