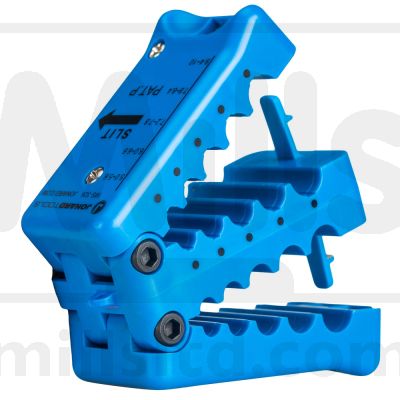

Jonard Mid Span Slit & Ring Tool

The patented Mid Span Slit and Ring Tool is designed to provide easy access to optical fibres in outer jackets and buffer tubes.

Consists of precision slitting grooves precision ring grooves ranging in size with one side of the tool performing radial/ring cuts and the other side slitting the cable (longitudinal cut)

Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go

Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

Blades last for 5,000 slits/cuts with replacement blade sets available.

Available to suit the following cable diameters:

1.2 - 3.3mm - Groove Sizes: 1.2 - 1.5mm | 1.5 - 1.8mm | 1.8 - 2.1mm | 2.1 - 2.5mm | 2.5 - 2.9mm | 2.9 - 3.3mm
2.9 - 6.8mm - Groove Sizes: 2.9 - 3.6mm | 3.6 - 4.4mm | 4.4 - 5.2mm | 5.2 - 6.0mm | 6.0 - 6.8mm
5.0 - 10.0mm - Groove Sizes: 5.0 - 5.6mm | 6.0 - 6.6mm | 7.2 - 7.8mm | 7.8 - 8.4mm | 9.4 - 10mm
5.8 - 12.0mm - Groove Sizes: 5.8 - 6.4mm | 7.8 - 8.4mm | 9.8 - 10.4mm | 11.2 - 12mm
7.9 - 11.0mm - Groove Sizes: 7.9 - 8.2mm | 10.7 - 11.0mm*
9.8 - 18.2mm - Groove Sizes: 9.8 - 10.2mm | 11.8 - 12.2mm | 15.4 - 15.8mm | 17.8 - 18.2mm**

* This tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccess

** This tool is specifically designed for use on Corning Altos® with FastAccess®

Mills Part Numbers

E00-3614 Jonard MS-306 Mid Span Slit & Ring Tool (1.2mm - 3.3mm)

E00-3613 Jonard MS-316 Mid Span Slit & Ring Tool (2.9mm - 6.8mm)

E00-7630 Jonard MS-326 Mid Span Slit & Ring Tool (5mm - 10mm)

E00-0962 Jonard MS-426 Mid Span Slit & Ring Tool (5.8mm - 12mm)

E00-3609 Jonard MS-336 Mid Span Slit & Ring Tool (7.9mm - 11mm)

E00-3608 Jonard MS-526 Mid Span Slit & Ring Tool (9.8mm - 18.2mm)
