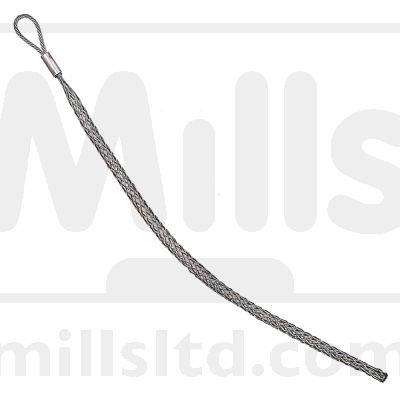

Grip Cable Single Eye Closed

Consists of wire mesh tube with one pulling eye at one end. These grips are placed over the end of the cable, allowing the drawing in or recovery of cables.

Available in the following sizes:

1/4" for 6 - 13mm diameter cable - (Length overall: 741mm / 29" - Lattice length 640mm / 25" - Load Capacity: 400kg / 900 lbs)
1/2" for 13 - 19mm diameter cable - (Length overall: 710mm / 28" - Lattice length 710mm / 28" - Load Capacity: 500kg / 1120 lbs)
3/4" for 19 - 25mm diameter cable - (Length overall: 1024mm / 40" - Lattice length 910mm / 36" - Load Capacity: 500kg / 1120 lbs)
1" for 25 - 38mm diameter cable - (Length overall: 1197mm / 47" - Lattice length 1070mm / 42" - Load Capacity: 1420kg / 3160 lbs)
1.1/2" for 38 - 50mm diameter cable - (Length overall: 930mm / 36.6" - Lattice length 787mm / 31" - Break load 2.5T)
2" for 50 - 63mm diameter cable - (Length overall: 1065mm / 42" - Lattice length 915mm / 36" - Break load 3T)
2.1/2" for 63 - 75mm diameter cable - (Length overall: 1153mm / 45.4" - Lattice length 1041mm / 41" - Break load  4T)

BT Openreach References

13 - 19mm - Ref: 126376
19 - 25mm - Ref: 126377
25 - 38mm - Ref: 126378
38 - 50mm - Ref: 126379
51 - 63mm - Ref: 126380
63 - 75mm - Ref: 126381

Mills Part Numbers

S00-7555 Mills Grip Cable Single Eye Closed 6 - 13mm
S00-7556 Mills Grip Cable Single Eye Closed 13-19mm
S00-7557 Mills Grip Cable Single Eye Closed 19-25mm
S00-7558 Mills Grip Cable Single Eye Closed 25-38mm
S83-3543 Grip Cable Single Eye Closed 38-50mm
S83-3189 Grip Cable Single Eye Closed 50-63mm
S83-3190 Grip Cable Single Eye Closed 63-75mm

Also known as a ‘cable pulling sock’.
