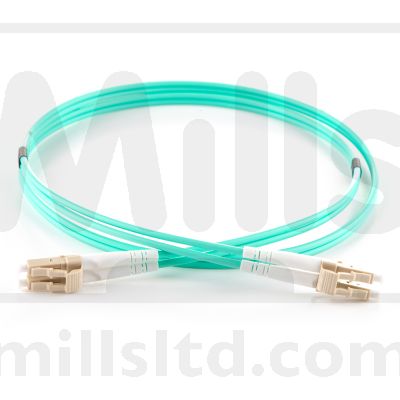

Fibre Optic Patch Cord Multimode Duplex - OM4

Manufactured using 50μm multimode fibre optimised for the use with 850nm VCSELS (vertical cavity surface emitting lasers), OM4 multimode patch cords are used particularly in 10, 40 and 100 Gb/s applications, where the transmission distances and higher bandwidth requirements have dictated a need for a higher performance but cost-effective multimode system.

Although not a replacement of OM3 systems, OM4, which is backward compatible with OM3 systems, provides an additional insertion loss margin to help compensate for less than ideal cabling installations and a greater reach at higher bandwidths at an overall cost that remains less than OS2 singlemode systems.

All assemblies are fully tested prior to delivery and supplied with test results.

OM4 multimode patch cords are supplied with 3mm (for additional ruggedising) aqua LSZH cable jacket as standard.

Applications

• Data centres

• Storage area networks

• LAN/Enterprise

• High performance computing centres

• Central offices

• For use in 40 -100 Gb/s networks >100m indicative link length at 850nm (SR) wavelength

• For use in 10 Gb/s networks >300m indicative link length at 850nm (SR) wavelength

• For use in 1 Gb/s networks >1000m indicative link length at 850nm (SX) wavelength

Features

• 850nm laser optimised

• LSZH - Low smoke zero halogen, aqua jacket

• 900μm tight buffer, 3mm simplex and duplex cable

• OM4 fibre conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards

• All patch cords come with a UPC polished connector end face as standard

Fibre Specification

Attenuation (db/km) ≤ 2.4 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal Bandwidth (MHz x km) ≥ 3500 @ 850nm / ≥ 500 @ 1300nm

Effective Modal Bandwidth (MHz x km) ≥ 4700 @ 850nm

Application Support Distance on: 40 and 100 Gigabit Ethernet -SR (m) 150 @ 850nm #

10 GBase - SR (m) 550 @ 850nm

1000 Base - SX (m) 1100 @ 850nm

Cable Specification

Cable Material LSZH

Strength Member Aramid

Crush (N/100mm) 1000

Tensile (N) 120

Operating temperature (°C) -20 to 60

Colour: Aqua

Mills Part Numbers

T70-5500 LC-LC Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5501 LC-LC Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5502 LC-LC Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5503 LC-LC Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5504 LC-LC Multimode Duplex Fibre Patch Cord OM4 50/125um 10m

T70-5505 LC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5506 LC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5507 LC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5508 LC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5509 LC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 10m

T70-5510 LC-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5511 LC-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5512 LC-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5513 LC-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5514 LC-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 10m

T70-5515 SC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5516 SC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5517 SC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5518 SC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5519 SC-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 10m

T70-5520 ST-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5521 ST-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5522 ST-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5523 ST-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5524 ST-SC Multimode Duplex Fibre Patch Cord OM4 50/125um 10m

T70-5525 ST-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 1m
T70-5526 ST-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 2m
T70-5527 ST-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 3m
T70-5528 ST-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 5m
T70-5529 ST-ST Multimode Duplex Fibre Patch Cord OM4 50/125um 10m
