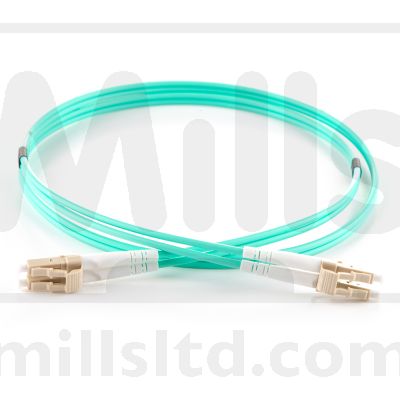

Fibre Optic Patch Cord Multimode Duplex - OM3

Manufactured using 50μm multimode fibre optimised for the use with 850nm VCSELS (vertical cavity surface emitting lasers), OM3 multimode patch cords are used particularly in 1 Gb/s, 10 Gb/s and higher bandwidth applications over shorter distances.

Compatible with higher performance OM4 systems, OM3 provides additional insertion loss margins while remaining cost effective for less-demanding applications.

All assemblies are fully tested prior to delivery and supplied with test results.

Most common connector types, configurations and lengths are available from stock, using 3mm (for additional ruggedising) or 2mm diameter cable on request.

OM3 multimode patch cords are supplied using 3mm cable (for additional ruggedising) LSZH cable jacket as standard.

Applications

• Data centres

• Storage area networks

• LAN/Enterprise

• High performance computing centres

• Central offices

• For use in 40 -100 Gb/s networks >100m indicative link length at 850nm (SR) wavelength

• For use in 10 Gb/s networks >300m indicative link length at 850nm (SR) wavelength

• For use in 1 Gb/s networks >1000m indicative • Link length at 850nm (SX) wavelength

Features

• 850nm laser optimised

• LSZH - Low smoke zero halogen, aqua jacket

• 900μm tight buffer, 3mm duplex cable

• OM3 fibre conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards

• All patch cords come with a UPC polished connector end face as stand

Fibre Specification

Attenuation (db/km) ≤ 2.4 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal Bandwidth (MHz x km) ≥ 1500 @ 850nm / ≥ 500 @ 1300nm

Effective Modal Bandwidth (MHz x km) ≥ 2000 @ 850nm

Application Support Distance on:

40 and 100 Gigabit Ethernet -SR (m) 100 @ 850nm

10 GBase - SR (m) 300 @ 850nm 1000 Base - SX (m) 1000 @ 850n

Cable Specification

Cable Material LSZH

Strength Member Aramid

Crush (N/100mm) 1000

Tensile (N) 120

Operating Temperature (°C) -20 to 60

Connector Specification

IL Max/Master (db) (Acceptance) ≤ 0.25

Av./Random (db) ≤ 0.20

Colour: Aqua

Mills Part Numbers

T70-0099 LC-LC Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0100 LC-LC Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0101 LC-LC Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0102 LC-LC Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0103 LC-LC Multimode Duplex Fibre Patch Cord OM3 50/125um 10m

T70-0108 LC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0109 LC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0110 LC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0111 LC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0112 LC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 10m

T70-0090 LC-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0091 LC-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0092 LC-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0093 LC-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0094 LC-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 10m

T70-0071 SC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0072 SC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0073 SC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0074 SC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0075 SC-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 10m

T70-0076 ST-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0077 ST-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0078 ST-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0079 ST-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0080 ST-SC Multimode Duplex Fibre Patch Cord OM3 50/125um 10m

T70-0081 ST-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 1m
T70-0082 ST-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 2m
T70-0083 ST-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 3m
T70-0084 ST-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 5m
T70-0085 ST-ST Multimode Duplex Fibre Patch Cord OM3 50/125um 10m
