Emtelle G657A1 SM Mini Cable

Minicables are for blowing into the duct network. They can be installed in single microducts or tube bundles. The cables are light-weight and smaller in diameter than traditional cables, enabling a higher fibre count within a small microduct.

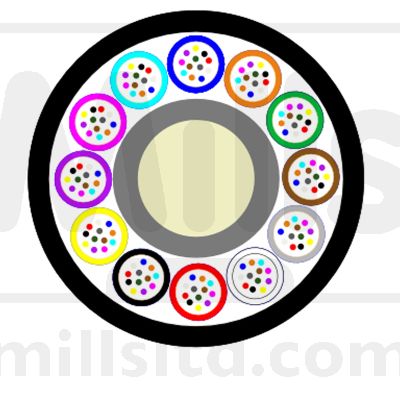

Cable consists of stranded core with central strength element (FRP) and gel filled loose tubes with optical fibres. Stranded core is fixed by water swellable yarns. Outer sheath is made of polyamide PA12. Colour of outer sheath is black.
Available colour codes are ANSI / TIA 598, DIN VDE 0888, S12, FIN2012.

Available in 12F, 24F, 48F, 96F and 144F configuarations and in lengths of 2km and 4km.

Supplied in reels.

• Ease of handling and durability
• Compatible with industry-standard blowing equipment
• Low friction coating for best blowing results
• Supplied on reels to ease fibre handling
• Fibre beads supplied in pan to enable blowing through connectors
• Supplied in lengths of 2KM and 4KM (lengths up to 12KM available on request)
• Gel filled loose tubes and water blocking yarns
• Light-weight and dielectric design

Mills Part Numbers

90692/2KM 12F Mini Cable G657A1 Black (5.8mm) 2000m
90692/4KM 12F Mini Cable G657A1 Black (5.8mm) 4000m
90693/2KM 24F Mini Cable G657A1 Black (5.8mm) 2000m
90693/4KM 24F Mini Cable G657A1 Black (5.8mm) 4000m
90409/2KM 48F Mini Cable G657A1 Black (5.8mm) 2000m
90409/4KM 48F Mini Cable G657A1 Black (5.8mm) 4000m
90408/2KM 72F Mini Cable G657A1 Black (5.8mm) 2000m
90408/4KM 72F Mini Cable G657A1 Black (5.8mm) 4000m
90980/2KM 96F Mini Cable G657A1 Black (6.2mm) 2000m
90980/4KM 96F Mini Cable G657A1 Black (6.2mm) 4000m
91143/2KM 144F Mini Cable G657A1 Black (8.5mm) 2000m
91143/4KM 144F Mini Cable G657A1 Black (8.5mm) 4000m
