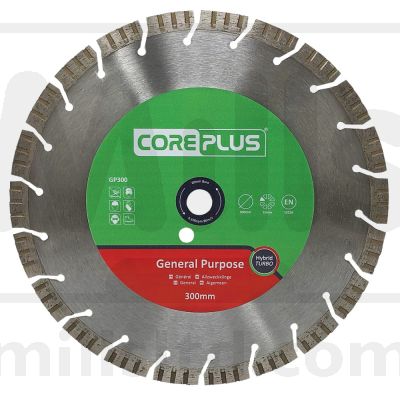

CorePlus General-Purpose Hybrid Turbo Diamond Blade

The CorePlus General-Purpose Diamond Blade utilises hybrid turbo technology (HTT), interspersed turbo segments provide the optimum balance between long life and fluid speed.

It has a precision-engineered, high-grade steel tensioned core for a blade that spins true. A high concentration of premium-grade diamond per segment and a bonded cutting edge help to prevent the diamond from getting glazed over in use.

Manufactured to EN 13236 quality standard.

For cutting the following materials:

Asphalt
Asphalt Over Concrete
Blocks - Breeze
Clay - Paviours
Clay - Pipes
Clay - Roof Tiles
Concrete - Hard Aggregates
Concrete - Paving Slabs
Concrete - Pipes
Concrete - Kerbs
Concrete - Tiles
Concrete - Cured
Concrete - Lintels
Concrete - Lintels Reinforced
Concrete - Limestone
Bricks
Bricks - Engineering
Bricks - Hard Facing
Bricks - Medium Facing
Paviours - Hard
Paviours - Medium Block
Sandstone - Hard
Slate
Slate - Hard
Roofing Tiles
Quarry Tiles

Available in 115, 125, 230, 300 and 350mm diameters.

Mills Part Numbers

P09-3852 Diameter 115mm (Bore: 22.23mm - Segment Height: 15mm - Segment Width: 2.8mm)

P09-0612 Diameter 125mm (Bore: 22.23mm - Segment Height: 15mm - Segment Width: 2.8mm)

P09-1615 Diameter 230mm (Bore: 22.23mm - Segment Height: 15mm - Segment Width: 2.8mm)

P09-0625 Diameter 300mm (Bore: 20mm - Segment Height: 15mm - Segment Width: 3.5mm)

P09-0624 Diameter 350mm (Bore: 25.4mm - Segment Height: 15mm - Segment Width: 3.5mm)
