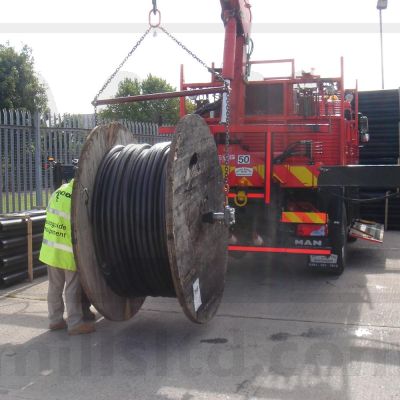

Cable Drum Spreader Bar

Designed for the safe lifting and handling of cable drums and cable laying applications.

The lightweight bar allows easy assembly through the drum centre, while all other parts are lifted into place with plant.

A simple pin in position coupler, with adjustment, allows the drum to be held on the bar, ensuring controlled rotation.

Cable drums rotate freely on bearings to ensure smooth cableunwinding.

Four standard units allow a large variety of drums to be carried.

50mm x 1.5m

Maximum Capacity 2500kg
Minimum Drum Width 120mm
Maximum Drum Width 1200mm
Maximum Drum Diameter 2200mm
Minimum Drum Hole Size 55mm
Spindle Weight 8kg

50mm x 2.0m

Maximum Capacity 2500kg
Minimum Drum Width 380mm
Maximum Drum Width 1700mm
Maximum Drum Diameter 2700mm
Minimum Drum Hole Size 55mm
Spindle Weight 11kg

76mm x 1.5m

Maximum Capacity 5000kg
Minimum Drum Width 250mm
Maximum Drum Width 1200mm
Maximum Drum Diameter 2200mm
Minimum Drum Hole Size 80mm
Spindle Weight 17kg

76mm x 2.0m

Maximum Capacity 5000kg
Minimum Drum Width 800mm
Maximum Drum Width 1700mm
Maximum Drum Diameter 2700mm
Minimum Drum Hole Size 80mm
Spindle Weight 22kg

Mills Part Numbers

S83-2082 Cable Drum Spreader Bar 76mm Spindle 2.0m Length

S83-2083 Cable Drum Spreader Bar 76mm Spindle 1.5m Length

S83-2084 Cable Drum Spreader Bar 50mm Spindle 2.0m Length

S83-2085 Cable Drum Spreader Bar 50mm Spindle 1.5m Length
