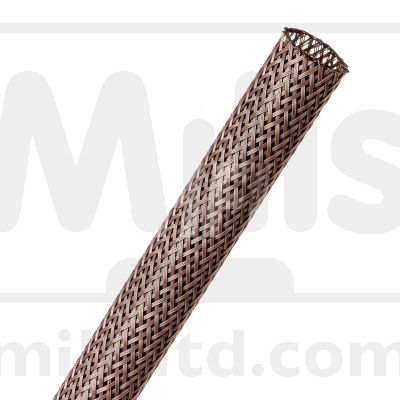

Cable Braid Rodent Resistant

Dark Brown Flexo Rodent Resistant (RRN) is the latest solution from Techflex for fighting the harmful effects of unprotected wires which are exposed to rodents.

Mice, rats and other rodents have never ending time to find and destroy wiring and hose systems. Techflex has once again combined our knowledge of technical filaments and braided protection sleeves to create an amazing rodent resistant sleeving.

Available in the following sizes:

1/4" - Expansion Min: 3.7mm ( 1/8" ) Expansion Max: 9.52mm ( 3/8" ) Supplied on a 60 metre roll.

3/8" - Expansion Min: 4.7mm ( 3/16" ) Expansion Max: 12.7mm ( 1/2" ) Supplied on a 37.5 metre roll.

5/8" - Expansion Min: 9.5mm ( 3/8" ) Expansion Max: 25.4mm ( 1" ) Supplied on a 30 metre roll.

Specifications

PHYSICAL PROPERTIES
Monofilament Diameter: 0.25 mm
Recommended Cutting: Hot Knife
Colors: 1
Wall Thickness: 0.64 mm
Tensile Strength: 7.5
Abrasion Resistance: Low
Specific Gravity: 1.38
Moisture Absorption Percent (%): 0.1 - 0.2

HARD VACCUUM DATA
TML: .19
CVCM: .00
WVR: .16
Smoke D-Max: 56
Outgassing: Medium
Oxygen Index: 21

OPERATING TEMPERATURES
Minimum Continuous: -94 ºF / -70 ºC
Maximum Continuous: 257 ºF / 125 ºC
Melt: 482 ºF / 250 ºC

CHEMICAL RESISTANCE
1 = No Effect, 2 = Little Effect, 3 = Affected, 4 = More Affected, 5 = Severely Affected
Aromatic Solvents: 2
Aliphatic Solvents: 1
Chlorinated Solvents: 3
Weak Bases: 1
Salts: 1
Strong Bases: 2
Salt Water: 1
Hydraulic Fluid: 1
Lube Oil: 1
De-Icing Fluid: 1
Strong Acids: 3
Strong Oxidants: 2
Esters / Ketones: 1
UV Light: 1
Petroleum: 1
Fungus: 1

OTHER INFORMATION
Halogen Free: Yes
ROHS: Yes
SVHC: None
UL: No

*Please use caution while handling Flexo Rodent Resistant. May cause skin and/or eye irritation.

*Please Note: The RRN is a Preventive but not guaranteed to stop rodents from causing damage.

Mills Part Numbers

R02-0065 Rodent Resistant Dark Brown Cable Braid 1/4" - 60m Roll

R02-0066 Rodent Resistant Dark Brown Cable Braid 3/8" - 37.5m Roll

R02-0067 Rodent Resistant Dark Brown Cable Braid 5/8" - 30m Roll
