Bend Duct Grey - 96.5mm Outside Diameter (Duct 54)

Emtelle duct bends for use with Duct 54 with an outside diameter of 96.5mm and inside diameter of 90mm.

Features

• Manufactured from virgin PVC-U polymer = 100% reliable performance.
• Duct Systems are manufactured to Industry Standard BSEN 61386.
• Solid wall construction, capable of being back-filled with “As Dug” materials where appropriate and not affected by sharp stone impingement.
• Smooth bore ensuring easier and safer installation of sub-ducts and cables owing to lower internal friction.

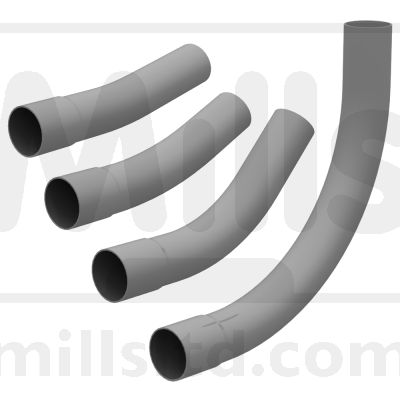

Available in the following sizes:

Bend Duct 18 Degrees (Bend Duct 54B)

Radius: 2685mm

Pack of 15

BT Openreach Ref: 095065

------

Bend Duct 22.5 Degrees (700R)

Radius: 700mm

Pack of 20

-----

Bend Duct 45 Degrees (Bend Duct 54D)

Radius: 350mm

Pack of 20

-----

Bend Duct 90 Degrees (Bend Duct 54A)

Radius: 427mm

Pack of 10

BT Openreach Ref: 094937

Mills Part NUmbers

S83-5057 Bend Duct 18 Degrees Grey 96.5mm OD (Bend Duct 54B) - Pack of 15
S83-5058 Bend Duct 22.5 Degrees Grey 96.5mm OD - Pack of 20
S83-5059 Bend Duct 45 Degrees Grey 96.5mm OD (Bend Duct 54D) - Pack of 20
S83-5060 Bend Duct 90 Degrees Grey 96.5mm OD (Bend Duct 54A) - Pack of 10
